Sealed Fuse Holders

typical mini fuses
Typical MINI® fuses (type ATM)
(Not supplied)

These use Delphi Packard Sealed Metri-Pack 280 series components. Functional temperature range is -40°C to 125°C (-40°F to 260°F). Contacts are rated at 30A - 16 VDC. Fuse holder rating depends on the gauge of the wire leads. Our proprietary ES10 sealed MINI fuse holder cap is now IMDS certified.

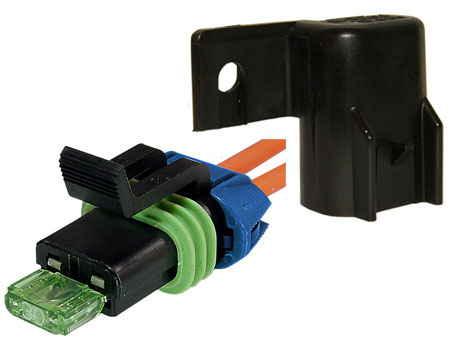

sealed fuse holder


  • Rated 2-30 amps
  • 10" 12-gauge (3.0 mm) Type GXL leads, color orange
  • Install with yellow 12-10 or blue 16-14 sealed butt connectors

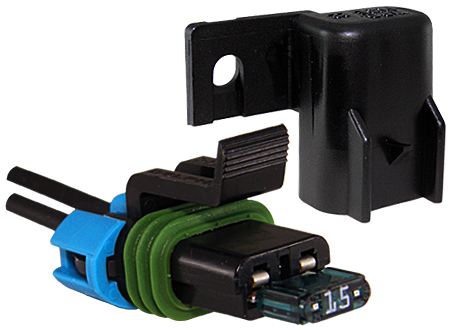

sealed fuse holder


  • Rated 2-20 amps
  • 10" 16-gauge (1.0 mm) Type SXL leads, color black
  • Install with blue 16-14 or red 22-18 sealed butt connectors
