Metri-Pack - Sealed 630

  • 46 amps continuous maximum current rating
  • Low-energy, low-voltage capability
  • -40°C to 125°C temperature range
  • Excellent chemical and abrasion resistance

Sealed Metri-Pack 630 Series Connectors and Locks

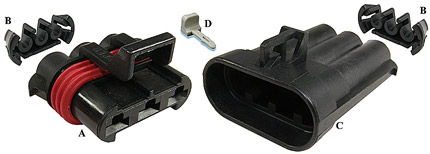

Metri-Pack - Sealed 630 Series Connector and Lock

Three-Way

White Products P/N OEM P/N Description
A F630SS-3 (12124685) Female Connector Assembly
B 630TPA-3 (1204569) TPA Lock
C M630SS-3 (12124686) Male Connector Assembly
D WP-CPA (Optional) (12020833) CPA Lock

The above 3-wire connector is the ONLY mating in-line connector set from the regular Sealed Metri-Pack 630 Series. A special 2-wire Sealed Metri-Pack 630 Series connector set using non-standard mixed components (not shown) is also available.

Sealed Metri-Pack 630 Series Terminals and Seals

Metri-Pack - Sealed 630 Series Female Terminal

Female Terminal

Part Number Guage Description
MPF-630S-12 (12052456) 12-10 Tin Plated

Metri-Pack - Sealed 630 Series Male Terminal

Male Terminal

Part Number Guage Description
MPM-630S-12 (12064737) 12 Tin Plated
MPM-630S-10 (12064736) 10 Tin Plated

Metri-Pack - Sealed 630 Series Cable Seals

Cable Seals

Part Number Color Guage Wire Diameter
MP-630S-BLU (12052668/15324996) Blue 12-10 4.50-3.61 mm
MP-630S-GRN (12052386/15324993) Green 14-10 5.15-4.40 mm

Metri-Pack - Sealed 630 Series Cavity Plug

Cavity Plug

Part Number Color
MP-630S-PLG (12059255) Green

Sealed Metri-Pack 630 Series
In-Line Connection Kits

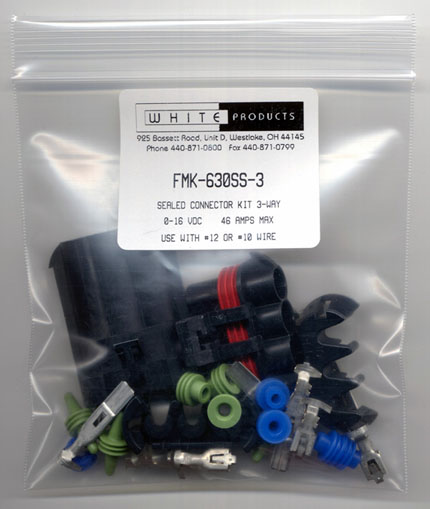

Sealed Metri-Pack 630 Series In-Line Connection Kit

FMK-630SS-3 (3-Way Kit)

Parts contained in this kit allow the user to make a one-way, two-way or three-way connection. Terminals and seals in this kit can be crimped with our T-19 crimping tool.

Part Number OEM Number Quantity
F630SS-3 12124685 1
M630SS-3 12124686 1
630TPA-3 12045699 2
MPF-630S-12 12052456 3
MPM-630S-12 12064737 3
MPM-630S-10 12064736 3
MP-630S-BLU 12052668/15324996 6
MP-630S-GRN 12052386 6
MP-630S-PLG 12059255 4
