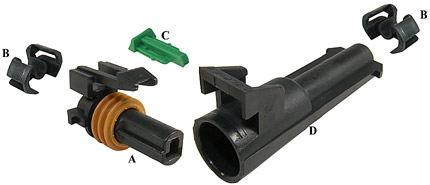

Sealed Metri-Pack 280 Connectors and Locks
One-Way
| Part Number |
OEM Number |
Description |
| A: F280SS-1 |
12065172 |
Female Connector Assembly |
| B: 280TPA-1 |
12065249 |
TPA Lock |
| C: MP-CPA (Optional) |
12052834 |
CPA Lock |
| D: M280SS-1 |
12065171 |
Male Connector Assembly |

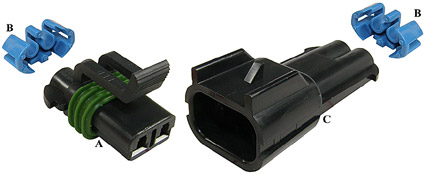

Two-Way
| Part Number |
OEM Number |
Description |
| A: F280SS-2 |
15300027 |
Female Connector Assembly |
| B: 280TPA-2 |
15300014 |
TPA Lock |
| C: M280SS-2 |
15300002 |
Male Connector Assembly |

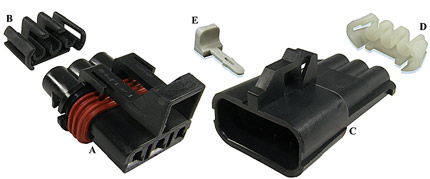

Three-Way
| Part Number |
OEM Number |
Description |
| A: F280SS-3 |
12040977 |
Female Connector Assembly |
| B: F280TPA-3 |
12034145 |
TPA Lock |
| C: M280SS-3 |
15300002 |
Male Connector Assembly |
| D: M280TPA-3 |
15300015 |
TPA Lock |
| E: WP-CPA (Optional) |
12034145 |
CPA Lock |
NOTE: The above connectors are the ONLY mating in-line
connector sets available in the Sealed Metri-Pack 280 Series. Dozens of other connectors
are available to mate with devices such as halogen light bulbs, sensors, motors, and
modules.
Terminals and Seals
| Male Terminals |
OEM Number |
Wire Gauges |
| MPM-280S-15 |
12129497 |
16-12 |
| MPM-280S-19 |
12048159 |
20-18 |
| MPM-280S-21 |
12124977 |
22-20 |
| Female Terminals |
OEM Number |
Wire Gauges |
| MPF-280S-12 |
12077413 |
12 |
| MPF-280S-15 |
12129493 |
16-12 |
| MPF-280S-19 |
12077411 |
20-16 |
| MPF-280S-21 |
12084201 |
22-20 |
Cable Seals
| Cable Seal |
Part Number |
Gauge |
Wire Diameter |
Color |
| WPS-BLU |
15324981 |
12 |
4.30 - 3.45mm |
Blue |
| WPS-GRA |
15324980 |
16-14 |
3.49 - 2.81mm |
Gray |
| WPS-GRN |
15324982 |
20-18 |
2.85 - 2.03mm |
Green |
| WPS-PPL |
15324985 |
24-20 |
2.15 - 1.60mm |
Purple |
| WPS-RED |
15324983 |
22-20 |
1.70 - 1.29mm |
Red |
| WPS-TAN |
15324984 |
20-18 |
2.42 - 2.03mm |
Tan |

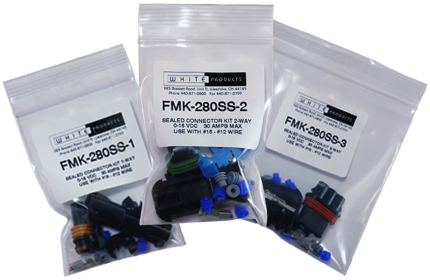

Sealed Metri-Pack 280
In-Line Connection Kits
Terminals and Seals in these kits can be crimped with the T-13 or T-18 crimping tool.
FMK-280SS-1 (1-Way Kit)
| Part Number |
OEM Number |
Quantity |
| F280SS-1 |
12065172 |
1 |
| M280SS-1 |
12065171 |
1 |
| 280TPA-1 |
12065249 |
2 |
| MPF-280S-15 |
12129493 |
1 |
| MPM-280S-15 |
12129497 |
1 |
| WPS-BLU |
15324981 |
2 |
| WPS-GRA |
15324980 |
2 |
FMK-280SS-2 (2-Way Kit)
| Part Number |
OEM Number |
Quantity |
| F280SS-2 |
15300027 |
1 |
| M280SS-2 |
15300002 |
1 |
| 280TPA-2 |
15300014 |
2 |
| MPF-280S-15 |
12129493 |
2 |
| MPM-280S-15 |
12129497 |
2 |
| WPS-BLU |
15324981 |
4 |
| WPS-GRA |
15324980 |
4 |
FMK-280SS-3 (3-Way Kit)
| Part Number |
OEM Number |
Quantity |
| F280SS-3 |
12040977 |
1 |
| M280SS-3 |
15300003 |
1 |
| F280TPA-3 |
12034145 |
1 |
| M280TPA-3 |
15300015 |
1 |
| MPF-280S-15 |
12129493 |
3 |
| MPM-280S-15 |
12129497 |
3 |
| WPS-BLU |
15324981 |
6 |
| WPS-GRA |
15324980 |
6 |
