Metri-Pack - Sealed 150

14 amps continuous maximum current rating
Low-energy, low-voltage capability
-40°C to 125°C temperature range

Sealed Metr-Pack 150 Series Connectors and Locks

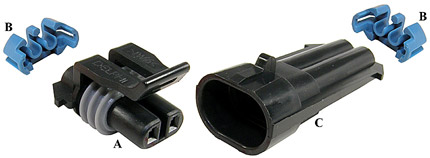

Sealed Metri-Pack Connector

Two-Way

White Products P/N	OEM P/N	Description
A F150SS-2	12052641	Female Connector Assembly
B 150TPA-2	12052634	TPA Lock
C M150SS-2	12162000	Male Connector Assembly

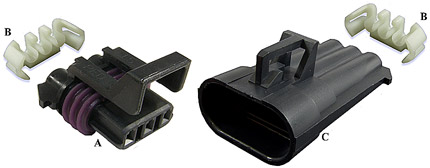

Sealed Metri-Pack Connector

Three-Way

White Products P/N	OEM P/N	Description
A F150SS-3	12110293	Female Connector Assembly
B 150TPA-3	12052845	TPA Lock
C M150SS-3	12129615	Male Connector Assembly

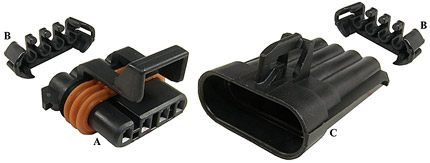

Sealed Metri-Pack Connector

Four-Way

White Products P/N	OEM P/N	Description
A F150SS-4	12162144	Female Connector Assembly
B 150TPA-4	12047948	TPA Lock
C M150SS-4	12162102	Male Connector Assembly

Sealed Metri-Pack 150 Series Terminals and Seals

Metri-Pack female terminal

Female Terminals

White Products P/N	OEM P/N	Gauge	Description
MPF-150S-18	12048074	20-16	Tin-Plated
MPF-150S-21	12084200	22-20	Tin-Plated

Metri-Pack Pack male terminal

Male Terminals

White Products P/N	OEM P/N	Gauge	Description
MPM-150S-19	12045773	20-16	Tin-Plated
MPM-150S-21	12077628	22-20	Tin-Plated

gravity plug

Gravity Plug

White Products P/N	OEM P/N
MP-150S-PLG	12059168

cable seals

Cable Seals

White Products P/N	OEM P/N	Gauge	Color
MP-150S-BLU	12048087/15324974	22 Gauge Wire Diameter 1.70-1.29 mm	Blue
MP-150S-RED	12048086/15324973	20-16 Gauge Wire Diameter 2.85-2.03 mm	Red
MP-150S-WHT	12089678/15324976	20 Gauge Wire Diameter 2.15-1.60 mm	White

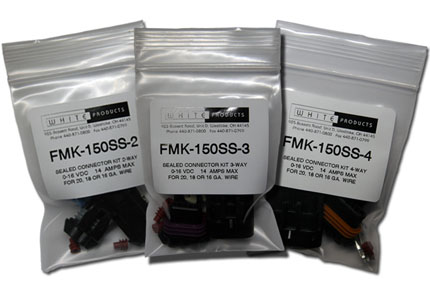

Sealed Metri-Pack 150 Series In-Line Connector Kits

cable seals

FMK-150SS-2 (2-Way Kit) for 20-16 Gauge

Part Number	OEM Number	Quantity
F150SS-2	12052641	1
M150SS-2	12162000	1
150TPA-2	12052634	2
MPF-150S-18	12048074	2
MPM-150S-19	12045773	2
MP-150S-RED	12048086/15324973	4

FMK-150SS-3 (3-Way Kit) for 20-16 Gauge

Part Number	OEM Number	Quantity
F150SS-3	12110293	1
M150SS-3	12129615	1
150TPA-3	12052845	2
MPF-150S-18	12048074	3
MPM-150S-19	12045773	3
MP-150S-RED	12048086/15324973	6

FMK-150SS-4 (4-Way Kit) for 20-16 Gauge

Part Number	OEM Number	Quantity
F150SS-4	12162144	1
M150SS-4	12162102	1
150TPA-4	12047948	2
MPF-150S-18	12048074	4
MPM-150S-19	12045773	4
MP-150S-RED	12048086/15324973	8
